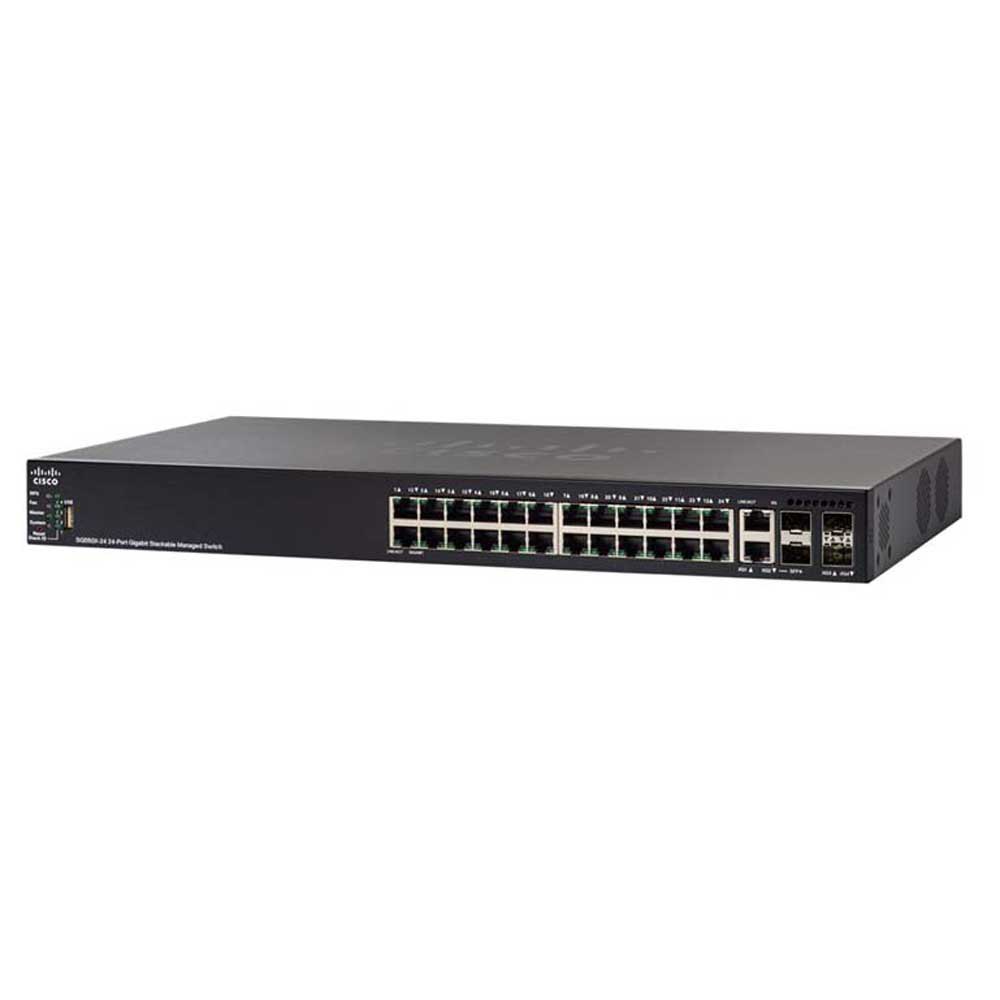

Cisco SG550X-24P-K9-EU – Cisco 550X Series 24-Port Gigabit PoE Stackable Switch (Black), Cisco Switch

 672,700

About The Gear:

Brand: Cisco

Series: Cisco 550X

Model: SG550X-24P-K9-EU

Color: Black

Recommended For: Small to Medium-Sized Businesses

Product Description:

The Cisco SG550X-24P-K9-EU, part of the Cisco 550X Series Switch, is an advanced Cisco switch that simplifies network configuration and management with its user-friendly interface. It offers advanced Layer 3 routing capabilities for effective network segmentation and provides advanced threat defense with TrustSec integration support. This option delivers the best network switch price in Pakistan.

Cisco-SG550X-24P-K9-EU Switch Key Features:

  • Delivers power & data over ethernet (PoE)
  • Includes 195w poe budget for devices
  • Enables stacking for scalability (up to 400 ports)
  • Ideal for PoE-powered devices (VoIP phones, IP cameras)
  • Provides advanced security features (optional)

Share to your buddy !

Specifications

From The Manufacturer

Cisco-SG550X-24P-K9-EU Switch Specifications

Model Cisco-SG550X-24P-K9-EU
Performance
Capacity in Millions of Packets per Second (mpps) (64-byte packets) 63.09
Switching Capacity (Gbps) 84.8
Layer 2 Switching
Spanning Tree Protocol Standard 802.1d spanning tree support
Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

●  Up to 8 groups

●  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN translation Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface C-VLANs are mapped to S-VLANs and the original C-VLAN tags are replaced by the specified S-VLAN
Q-in-Q VLANs transparently cross a service provider network while isolating traffic among customers
GVRP/GARP Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain
HOL blocking Head-Of-Line (HOL) blocking
Layer 3
Wirespeed IPv6 static routing Up to 1,792 routes and up to 256 IPv6 interfaces
Layer 3 Interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
DHCP Server Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes

Support for DHCP options

DHCP relay at Layer 3 Relays DHCP traffic across IP domains
RIP v2 Support for Routing Information Protocol version 2 for dynamic routing
Hardware stack Up to 8 units in a stack. Up to 400 ports managed as a single system with hardware failover
Security
Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported
Web-based authentication Web-based authentication provides network admission control through a web browser to any host devices and operating systems
STP Root Guard This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes
RADIUS/TACACS+ Supports RADIUS and TACACS authentication
ACLs Support for up to 1K rules
DoS prevention Denial-of-service (DOS) attack prevention
Storm control Broadcast, multicast, and unknown unicast
Quality of Service
Priority levels 8 hardware queues
Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
Secure Copy (SCP) Securely transfer files to and from the switch
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
Total system ports 24x FE + 4x 10 GE
OOB management port Dedicated Gigabit management port for out-of-band management on SG550XG and SX550X models
Console port Cisco Standard RJ-45 console port
Smartports Simplified configuration of QoS and security capabilities
Buttons Reset button
weight 4.14 kg (9.13 lb)
Packet buffer 1.5 MB
Unit dimensions 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)

Product Datasheet:

User Guide

Comparison

Comparison With Similar Cisco Switches

Feature Cisco-SG550X-24P-K9-EU SG550X-24-K9-EU SG250X-24-K9-EU
Price Rs.   672,700 Rs.  295,000 Rs. 83,000
Ports 24 x Gigabit Ethernet 24 x Gigabit Ethernet 24 x Gigabit Ethernet
Manageability        Smart-managed Smart-managed Managed
Layer Support Layer 2 & 3 Layer 2 & 3 Layer 2 & 3

Warranty & Support

Product Warranty Information:

Check out the official website of Cisco for the listed product warranty.

FAQs

Q: Is it suitable for large networks?

A: Yes.

Q: Are software updates available?

A: Yes.

Q: Is it compatible with Cisco SG switches?

A: Yes.
