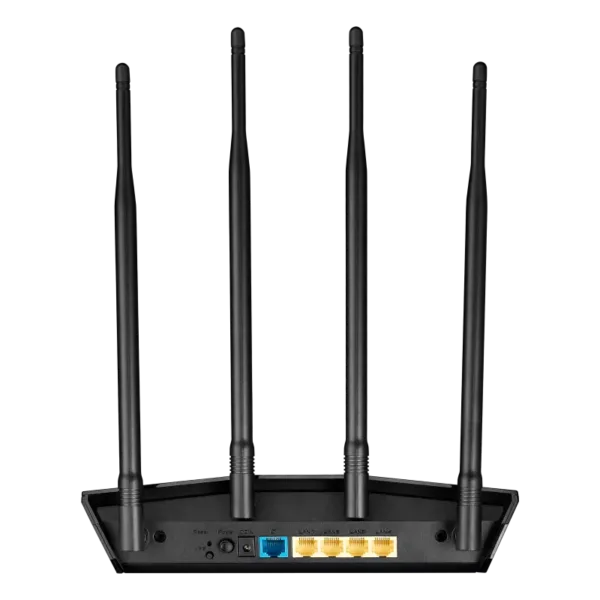

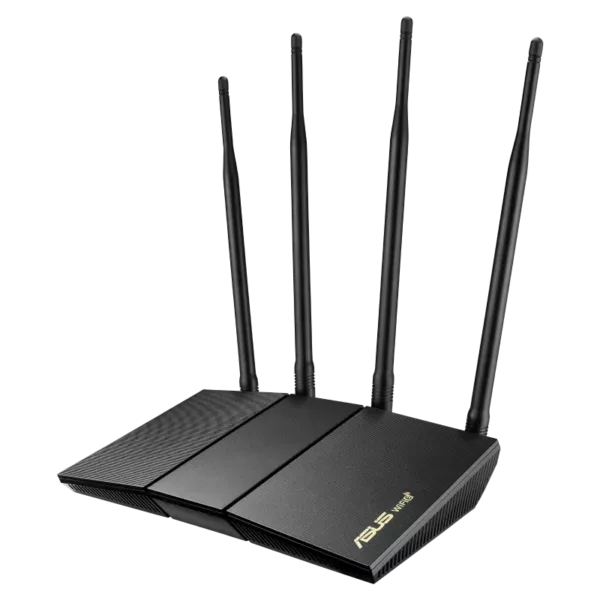

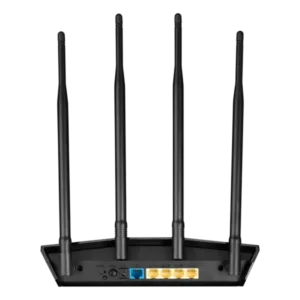

| Model |
RT-AX1800HP |
| Network Standard |
IEEE 802.11a |
|
IEEE 802.11b |
|
IEEE 802.11g |
|
Wi-Fi 4 (802.11n) |
|
Wi-Fi 5 (802.11ac) |
|
Wi-Fi 6 (802.11ax) |
| IPv4 |
Supported |
| IPv6 |
Supported |
| Wi-Fi Data Rate |
802.11a: up to 54 Mbps |
|
802.11b: up to 11 Mbps |
|
802.11g: up to 54 Mbps |
|
Wi-Fi 4 (802.11n): up to 300 Mbps |
|
Wi-Fi 5 (802.11ac): up to 867 Mbps |
|
Wi-Fi 6 (802.11ax) (2.4GHz): up to 574 Mbps |
|
Wi-Fi 6 (802.11ax) (5GHz): up to 1201 Mbps |
| Antenna |
External antenna x 4 |
| Transmit / Receive |
2.4GHz 2×2 |
|
5GHz 2×2 |
| Processor |
Dual-core (4 VPE) |
| Memory |
128 MB Flash |
|
256 MB RAM |
| Boosts Speed |
OFDMA, Beamforming, 1024-QAM, 20/40/80 MHz bandwidth |
| Operating Frequency |
2.4 GHz / 5 GHz |
| Operating Mode |
Access Point, Media Bridge, Repeater, Router |
| I/O Ports |
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 |
| Buttons |
WPS Button, Reset Button, Power Switch |
| LED Indicator |
Power x 1, 2.4G x 1, 5G x 1, LAN x 1, WAN x 1 |
| Power Supply |
AC Input: 100V60Hz) |
|
DC Output: 12 V with max. 1.5A current |
| Package Content |
RT-AX1800HP, RJ45 x1, Adapter x1, QSG x1, Warranty Card x1 |
| Product Weight (g) |
390g / 0.86lb |
| Product Dimensions |
230 x 134 x 56 mm |
|
9.06 x 5.28 x 2.2 inch |
| AiMesh |
Primary AiMesh Router, AiMesh Node |
| Parental Control |
Block access to unwanted websites and apps, Customized Internet Schedule |
| Guest Network |
Provides Internet connection for guests but restricts access to your local network |
| Security |
Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal, WPS, Let’s Encrypt, SSH, Firewall, AiProtection (Malicious Site Blocking, Infected Device Prevention and Blocking) |
| VPN |
VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP |
| Traffic Control |
Bandwidth Limiter, Traditional QoS, Traffic Monitor (Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor) |
| WAN |
PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Port Forwarding, Port Triggering, DMZ, DDNS |
| LAN |
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL) |
| Wireless |
UTF-8 SSID, Wi-Fi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming |
| Administration |
Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log |
