Specifications
From The Manufacturer:

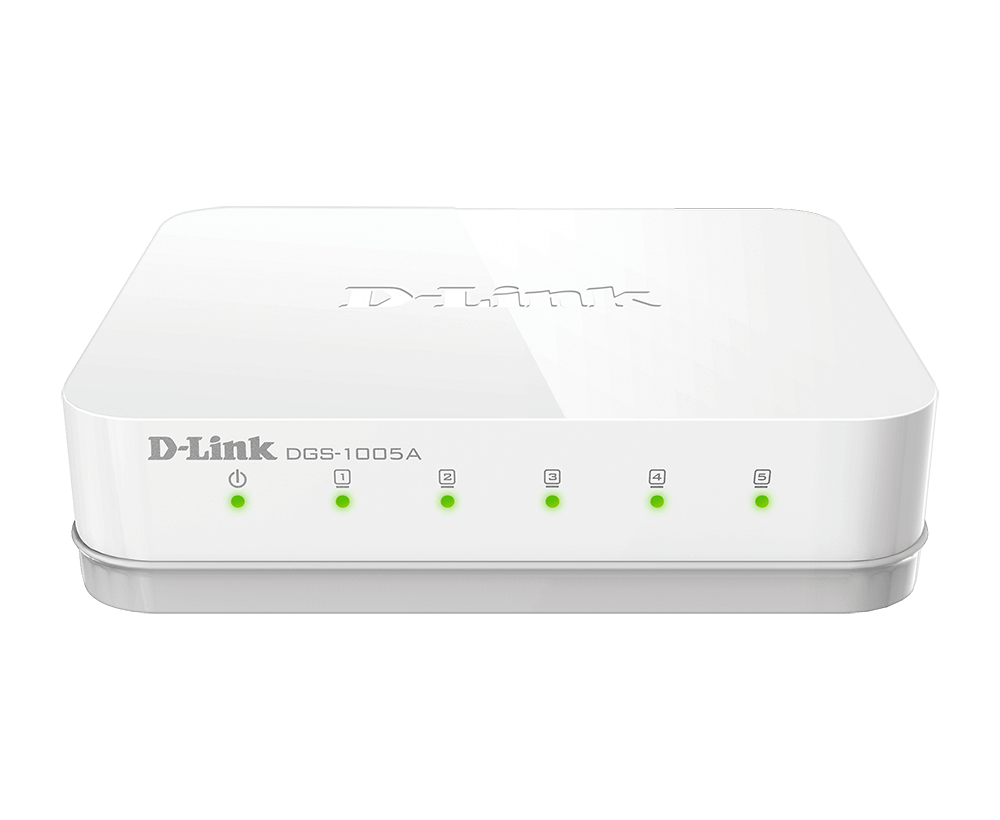

DGS-1005A Surveillance Switch Specifications:
| Feature | Specification |
|---|---|
| Air Discharge | 8kV |
| Auto MDI/MDIX | Yes |
| Comply with RoHS 6 | Yes |
| Control | 802.3x Flow |
| Dimensions | 91 x 73 x 22mm |
| Energy Efficiency Ethernet (EEE) | Yes |
| FAN | Fanless |
| Flash Memory Size | 64KBytes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Interfaces | 5 x 1000Base-T |
| Jumbo Frame | 9,720 Bytes |
| MAC Address Table Size | 4,000 |
| Max. Packet Forwarding Rate | 7.44 Mpps |
| Maximum Heat Dissipation | 13.299 BTU/h |
| Maximum Power Consumption | 3.90 W |
| MTBF | 1,152,221 hours |
| Operating Altitude | 2000m |
| Operating Humidity | 0% ~ 95% RH |
| Operating Temperature | 0 ~ 40 °C |
| Packet Buffer Size | 128KBytes |
| Power Input | AC：100 ~ 240 V |
| Power Saving By Cable Length | Yes |
| Power Saving By Link Status | YES |
| Standby Power Consumption | 0.6 W |
| Storage Humidity | 0% ~ 95% RH |
| Storage Temperature | – 10 ~ 70 °C |
| Store & Forwarding Forwading | Yes |
| Surge/Lightning Protection | AC Power Inet: 1kV All Ethernet Ports: 1kV |
| Switching Capacity | 10 Gbps |
| Weight | 800 g |
