Specifications
From The Manufacturer:

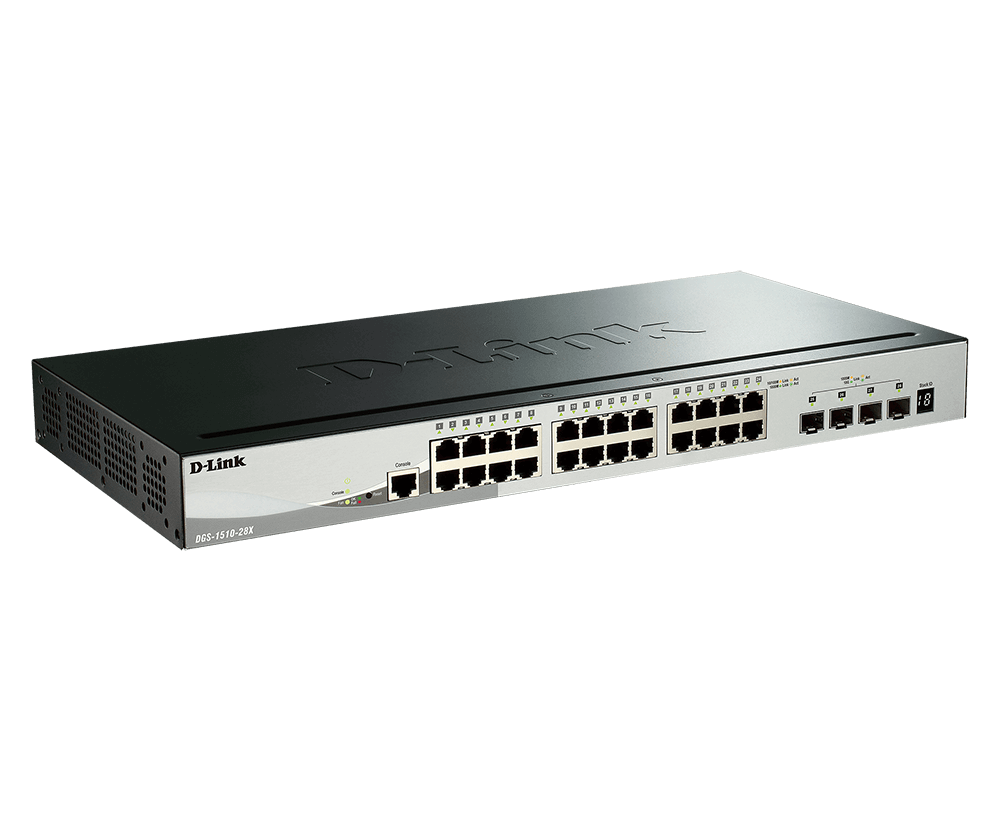

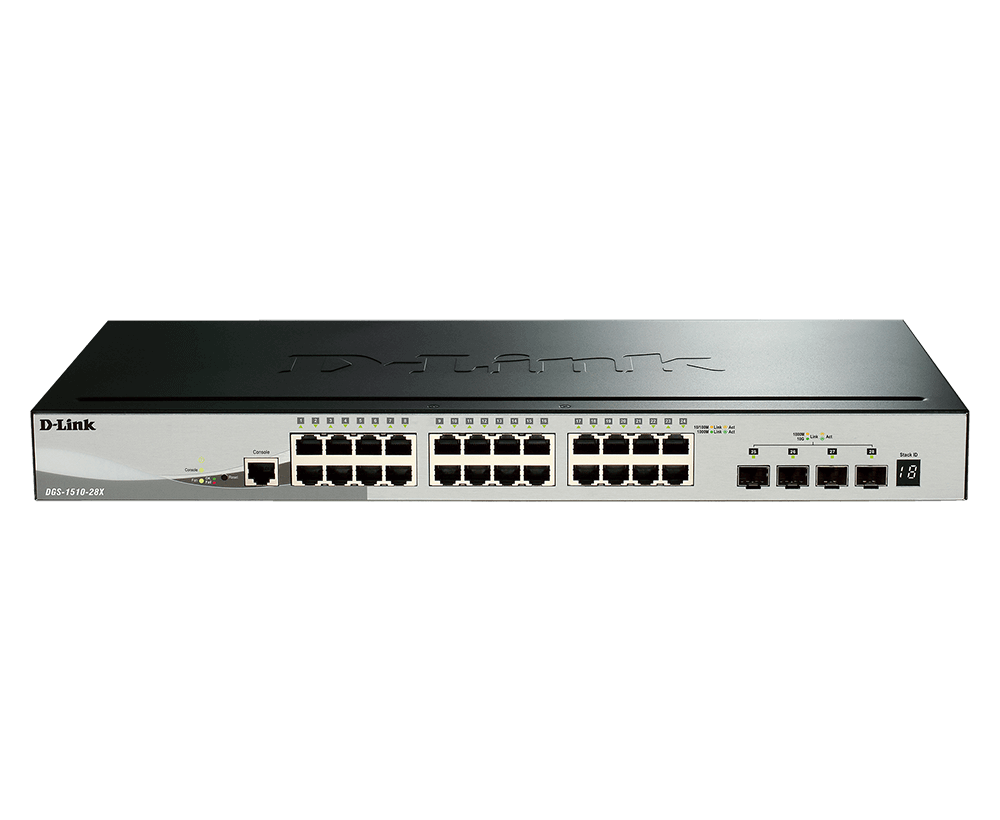

D-Link DGS-1510-28X/E Switch Specifications:
| Technical Specifications | DGS-1510-28X |
| Hardware Version | A1 |
| General | |
| Size | 19” standard rack width, 1U height |
| Interfaces | 24 x 10/100/1000 Mbps |
| 4 x 10G SFP+ | |
| Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3ae 10 Gigabit Ethernet | |
| IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation | |
| Network Cables | UTP Cat. 5, Cat. 5e (100 m max.) |
| EIA/TIA-568 100-ohm STP (100 m max.) | |
| Duplex Mode | Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed |
| Media Interface Exchange | Auto or configurable MDI/MDIX |
| Performance | |
| Switching Capacity | 128 Gbps |
| Transmission Method | Store-and-forward |
| MAC Address Table | Up to 16,384 entries per device |
| MAC Address Update | Up to 512 static MAC entries, Enable/disable auto-learning of MAC addresses |
| Maximum Packet Forwarding Rate | 95.24 Mpps |
| Packet Buffer Memory | 1.5 MB per device |
| MTBF | 516,593 hours |
| Flash Memory | 32 MB |
| DRAM Size | 256 MB |
| Diagnostic LEDs | |
| Power/Stacking ID/Fan (per device) | ✔ |
| Link/Activity/Speed (per 10/100/1000 Mbps port) | ✔ |
| Link/Activity/Speed (per Gigabit SFP port) | ✔ |
| Link/Activity/Speed (per 10G SFP+ port) | ✔ |
| Physical & Environment | |
| AC Input | 100 to 240 VAC 50/60 Hz internal universal power supply |
| Maximum Power Consumption | 32.34 W |
| Standby Power Consumption | 15.0 W |
| Fan Quantity | 1 |
| Heat Dissipation | 110.37 BTU/hr |
| Weight | 3.16 kg |
| Dimensions | 440 x 210 x 44 mm |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
| EMC Certifications | CE Class A, FCC Class A, BSMI, CCC |
| Safety | LVD, BSMI, CCC |
| MTBF (Hours) | 516,593 |
