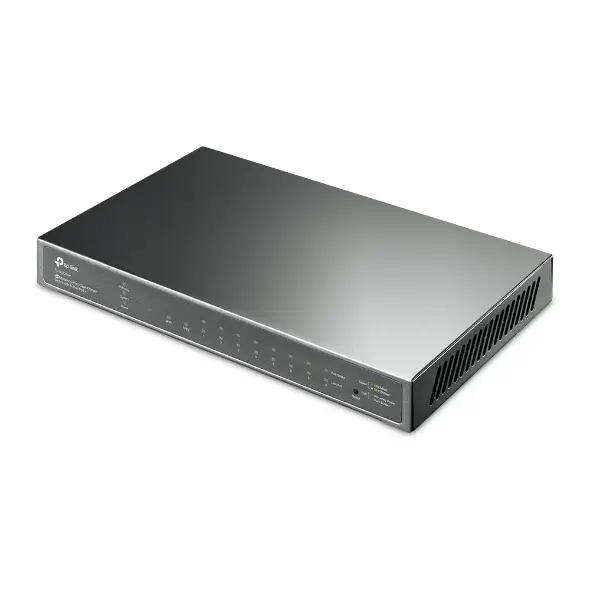

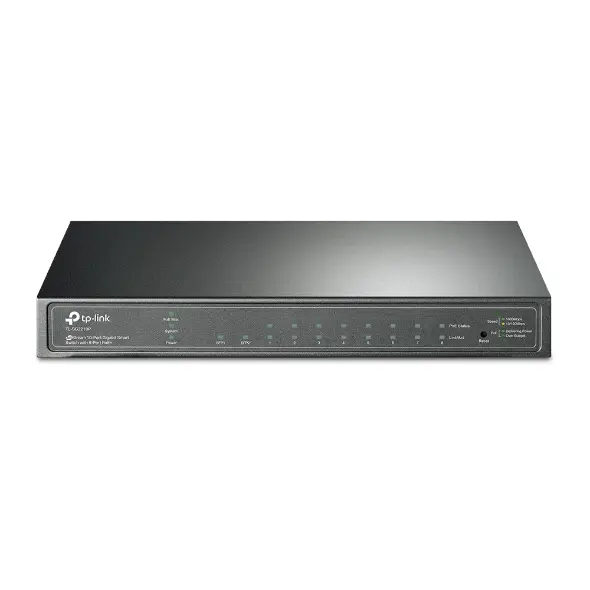

TP-Link TL-SG2210P Gigabit Smart Switch Specifications:
| Hardware Features | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |

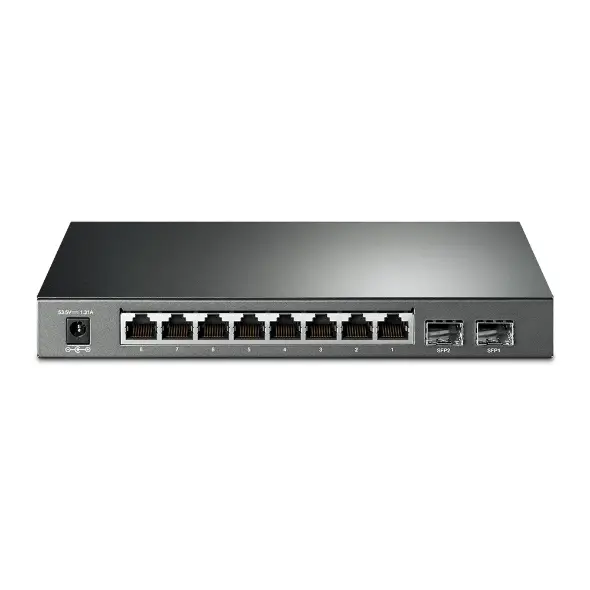

| Interface | • 8× 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
| • 2× 1000Mbps SFP Slots | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
| • 1000BASE-X: MMF, SMF | |
| Fan Quantity | Fanless |
| Power Supply | • 100~240VAC, 50/60Hz |
| • External Power Adapter(Output: 53.5VDC/1.31A) | |
| PoE Ports (RJ45) | • Standard: 802.3af/at compliant |
| • PoE Ports: 8 Ports | |
| • Power Supply: 61 W* | |
| Dimensions (W x D x H) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| Mounting | Desktop / Wall-Mounting |
| Max Power Consumption | • V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected) |
| • V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected) | |
| • V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected) | |
| Max Heat Dissipation | • V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected) |
| • V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected) | |
| • V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected) | |
| Performance | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Software Features | |
| Quality of Service | • 802.1p CoS/DSCP priority |
| • 8 priority queues | |
| • Priority Schedule Mode | |
| – SP (Strict Priority) | |
| – WRR (Weighted Round Robin) | |
| • Queue Weight Config | |
| • Bandwidth Control | |
| – Port/Flow based Rating Limit | |
| • Smoother Performance | |
| • Storm Control | |
| – Multiple Control Modes(kbps/ratio) | |
| L2 and L2+ Features | |
| • 16 IP Interfaces | |
| – Support IPv4/IPv6 Interface | |
| • Static Routing | |
| – 32 IPv4/IPv6 Static Routes | |
| • DHCP Server | |
| • DHCP Relay | |
| – DHCP Interface Relay | |
| – DHCP VLAN Relay | |
| • DHCP L2 Relay | |
| • Static ARP | |
| • Proxy ARP | |
| • Gratuitous ARP | |
| • Link Aggregation | |
| – Static link aggregation | |
| – 802.3ad LACP | |
| – Up to 8 aggregation groups and up to 8 ports per group | |
| • Spanning Tree Protocol | |
| – 802.1D STP | |
| – 802.1w RSTP | |
| – 802.1s MSTP | |
| – STP Security: TC Protect, BPDU Filter/Protect, Root Protect | |
| • Loopback Detection | |
| • Flow Control | |
| – 802.3x Flow Control | |
| • Mirroring | |
| – Port Mirroring | |
| – CPU Mirroring | |
| – One-to-One | |
| – Many-to-One | |
| – Flow-Based | |
| – Ingress/Egress/Both | |
| • Device Link Detect Protocol (DLDP) | |
| • 802.1ab LLDP/ LLDP-MED | |
| Advanced Features | |
| • Automatic Device Discovery | |
| • Batch Configuration | |
| • Batch Firmware Upgrading | |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| VLAN | |
| • VLAN Group | |
| – Max. 4K VLAN Groups | |
| • 802.1Q tag VLAN | |
| • MAC VLAN: 12 Entries | |
| • Protocol VLAN | |
| • GVRP | |
| • Voice VLAN | |
| Access Control List | |
| • Support up to 230 entries | |
| • Time-Range | |
| – Time Slice | |
| – Week Time-Range | |
| – Absolute Time-Range | |
| – Holiday | |
| • Time-based ACL | |
| • MAC ACL | |
| – Source MAC | |
| – Destination MAC | |
| – VLAN ID | |
| – User Priority | |
| – Ether Type | |
| • IP ACL | |
| – Source IP | |
| – Destination IP | |
| – IP Protocol | |
| – TCP Flag | |
| – TCP/UDP Source Port | |
| – TCP/UDP Destination Port | |
| – DSCP/IP TOS | |
| • IPv6 ACL | |
| • Combined ACL | |
| • Rule Operation | |
| – Permit/Deny | |
| • Policy Action | |
| – Mirror | |
| – Rate Limit | |
| – Redirect | |
| – QoS Remark | |
| • ACL Rules Binding | |
| – Port Binding | |
| – VLAN Binding | |
| • Actions for flows | |
| – Mirror (to supported interface) | |
| – Redirect (to supported interface) | |
| – Rate Limit | |
| – QoS Remark | |
| Security | |
| • AAA | |
| • 802.1X | |
| – Port-based authentication | |
| – MAC (Host) based authentication | |
| – Authentication Method includes PAP/EAP-MD5 | |
| – MAB | |
| – Guest VLAN | |
| – Support Radius authentication and accountability | |
| • IP/IPv6-MAC Binding | |
| – 512 Binding Entries | |
| – DHCP Snooping | |
| – DHCPv6 Snooping | |
| – ARP Inspection | |
| – ND Detection | |
| • IP Source Guard | |
| – 253 Entries | |
| – Source IP+Source MAC | |
| • IPv6 Source Guard | |
| – 183 Entries | |
| – Source IPv6 Address+Source MAC | |
| • DoS Defend | |
| • Static/Dynamic/Permanent Port Security | |
| – Up to 64 MAC addresses per port | |
| • Broadcast/Multicast/Unicast Storm Control | |
| – kbps/ratio control mode | |
| • Port Isolation | |
| • Secure web management through HTTPS with SSLv3/TLS 1.2 | |
| • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| • IP/Port/MAC-based access control | |
| IPv6 | |
| • IPv6 Static Routing and ACL | |
| • IPv6 Dual IPv4/IPv6 | |
| • IPv6 Interface | |
| • Multicast Listener Discovery (MLD) Snooping | |
| • IPv6 neighbor discovery (ND) | |
| • Path maximum transmission unit (MTU) discovery | |
| • Internet Control Message Protocol (ICMP) version 6 | |
| • TCPv6/UDPv6 | |
| • IPv6 applications | |
| – DHCPv6 Client | |
| – Ping6 | |
| – Tracert6 | |
| – Telnet(v6) | |
| – IPv6 SNMP | |
| – IPv6 SSH | |
| – IPv6 SSL | |
| – Http/Https | |
| – IPv6 TFTP | |
| MIBs | |
| • MIB II (RFC1213) | |
| • Bridge MIB (RFC1493) | |
| • P/Q-Bridge MIB (RFC2674) | |
| • Radius Accounting Client MIB (RFC2620) | |
| • Radius Authentication Client MIB (RFC2618) | |
| • Remote Ping, Traceroute MIB (RFC2925) | |
| • Support TP-Link private MIBs | |
| • RMON MIB(RFC1757, rmon 1,2,3,9) | |
| MANAGEMENT | |
| Omada App | Yes, through |
| • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Centralized Management | • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) |
| • Omada Hardware Controller OC300 | |
| • Omada Hardware Controller OC200 | |
| • Omada Software Controller | |
| Cloud Access | Yes, through |
| • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
| Management Features | • Web-based GUI |
| • Command Line Interface (CLI) through telnet | |
| • SNMPv1/v2c/v3 | |
| • SNMP Trap/Inform | |
| • RMON (1,2,3,9 groups) | |
| • SDM Template | |
| • DHCP/BOOTP Client | |
| • Dual Image, Dual Configuration | |
| • CPU Monitoring | |
| • Cable Diagnostics | |
| • EEE | |
| • SNTP | |
| • System Log | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2210P |
| Power Adapter | |
| Installation Guide | |
| Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃40℃ (32℉104℉); |
| Storage Temperature: -40℃70℃ (-40℉158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
