Specifications
From The Manufacturer

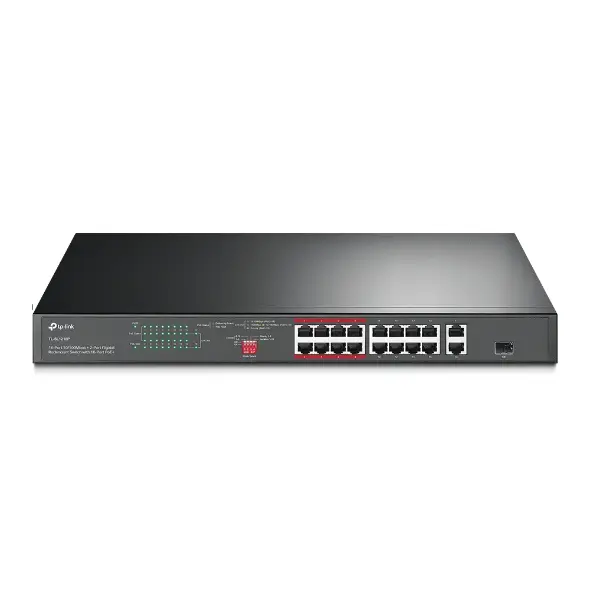

TP-Link TL-SL1218P 16-port Rackmount Switch Specifications:
| HARDWARE FEATURES | |
| Interface | • 16× PoE+ 10/100 Mbps RJ45 Ports |
| • 2× 10/100/1000 Mbps RJ45 Ports | |
| • 1× Combo Gigabit SFP Slot | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 1000BASE-X MMF, SMF | |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant |
| • PoE Ports: Ports 1–16 | |
| • PoE Power Budget: 150 W | |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | • 12.7 W (no power device connected) |
| • 172.8 W (with 150W power devices connected) | |
| Max Heat Dissipation | • 43.3 BTU/h (no power device connected) |
| • 589.3 BTU/h (with 150W power devices connected) | |
| PERFORMANCE | |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • Compatible With IEEE 802.3at/af Compliant PDs |
| • Extend Mode (Up to 250m PoE power supply and data transmission) | |
| • Priority Mode | |
| • Isolation Mode | |
| • Mac Address Auto-Learning And Auto-Aging | |
| • IEEE802.3x Flow Control | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SL1218P |
| • Power Cable | |
| • Installation Guide | |
| • Two mounting brackets | |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) |
| • Storage Temperature: -40–70 °C (-40–158 °F) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
