Specifications
From The Manufacturer:

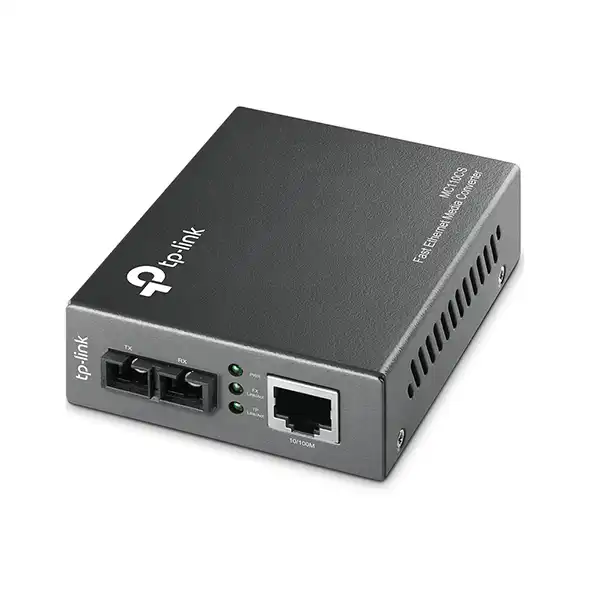

TP-Link MC110CS Single-mode Converter Specifications:
| Category | Feature | Description |
| Standards and Protocols | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
| Full Duplex Flow Control (IEEE 802.3x) | ||
| Half Duplex Flow Control (Backpressure) | ||
| Extends fiber distance up to 20km | ||
| Ports | Ports | 1 100M SC/UPC port |
| 1 10/100M RJ45 port (Auto MDI/MDIX) | ||
| Wave Length | Wave Length | 1310nm |
| Network Media | Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | ||
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | ||
| Network Media 100BASE-FX | Single-mode Fiber | |
| LED Indicators | LED Indicators | PWR, Link/Act |
| Dimensions (WDH) | Dimensions (WDH) | 3.72.91.1 in. (94.573.027.0 mm) |
| Power Supply | Power Supply | External power supply |
| Max Power Consumption | Max Power Consumption | 2.4W |
| Safety & Emission | Safety & Emission | FCC, CE, RoHS |
| Package Contents | Package Contents | Media Converter MC110CS |
| Power Adapter | ||
| Installation Guide | ||
| Environment | Environment | Operating Temperature: 0℃40℃ (32℉104℉) |
| Storage Temperature: -40℃70℃ (-40℉158℉) | ||
| Operating Humidity: 10%~90% non-condensing | ||
| Storage Humidity: 5%~90% non-condensing |
